MX66O Series of Central Filtration Systems

M4660 Mist Smoke Collector

The MX66O series includes large industrial media-based air cleaning systems. Scalable configurations of the MX66O series may include either two, three or four M66O systems based on your shop or plant’s air flow requirements and the motor and blower package you select. Custom motors and blowers are available for a wide variety of machining applications.

The MX66O Series product line provides airflow capacities ranging from 4,000 CFM to 8,000 CFM. The air cleaning systems are designed with multi-stage pre-filter and primary filter options and are customizable to collect and remove your specific particle contaminants. The M266O, M366O and M466O systems can be equipped with HEPA filtration and/or odor modules for increased filter efficiency and vapor/odor control.

These central air filtration systems are extremely flexible and versatile and can be configured to clean the air of coolant mist, grinding dust, process smoke, welding fumes and many other industrial manufacturing pollutants. The MX66O series can be installed in a room and configured to provide long life in both continuous and intermittent duty applications.

Blower packages are customized to fit individual customer needs, based on room size, pollutants and more. Contact one of our air cleaning professionals for assistance in system configuration and filter selection.

Learn more about the MX66O Series of air cleaners with this data sheet, or review our parts list for media mist collectors.

M33O / M66O Mist Collectors

Photo of M33O

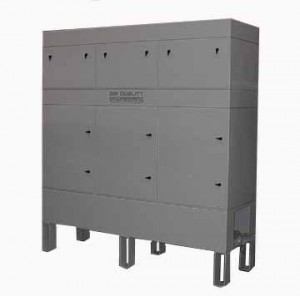

M366O

Photo of M366O 3 Stage with HEPA

M466O

Photo of M466O 2 Stage

Request Quote

Model MX-Series Specifications

MX-Series: M33O, M66O, M266O, M366O & M466O Air Cleaners

Supplying Clean Air to Industry

MX Welding Environment MW Water Environment

Air Quality Engineering uses proven technologies and a comprehensive range of equipment to handle harmful airborne industrial contaminants such as coolant mist, welding smoke, and grinding dust. Our industrial air cleaners are easily installed and available for general background air cleaning or source capture applications.

The MX-Series air cleaners are media filtration based units designed for source capture applications dealing with mist and smoke. The MX-Series is designed to provide either a self-contained unit with motor and blower (M33O and M66O) or a customized package (M266O, M366O and M466O) in which we work with you to select the best motor/blower packages to meet your source capture design.

MX-Series solutions provide airflow capacities ranging from 1,000 CFM to 8,000 CFM. Solutions are designed with multi-stage filtration customized to handle your specific contaminants. The M66O, as well as the M266O, M366O, and M466O, can be equipped with HEPA filtration and/or odor modules for increased filter efficiency and vapor/odor control.

Air Quality Engineering stands behind the quality of the MX-Series with a limited 36 month warranty.

The MX-Series provides:

  • Reduced maintenance costs through extended life filters having maximum media surface area
  • Reduced start-up costs with on-board controls and circuitry
  • Increased speed of system deployment through Air Quality Engineering’s configuration and technical support
  • Increased air cleaning efficiency through the use of a wide selection of pre and primary filter options to meet specific contaminant requirements
  • Superior product quality and workmanship from a U.S.A. manufacturer

MX-Series: M33O, M66O, M266O, M366O & M466O

The MX-Series is composed of both self contained systems (M33O and M66O) and scalable solutions customized for airflow based on the selection of motor and blower packages (M266O, M366O, and M466O).

Need to handle one or two manufacturing processes with a source capture solution? Look to the M33O and M66O providing standard motor/blower configurations for quick deployment.

Want the maximum scalability for filter life and source capture design? Then the M266O, M366O and M466O are the scalable solutions providing custom motor/blower packages and a wide range of filter options.

M33O Mist & Smoke Collector

MX Series M33O M330 Mist Smoke Collector

ModelM33O
Maximum Recommended Airflow1,000 CFM
Cabinet16 gauge steel cabinet with powder coated chemical resistant baked enamel, available in ivory textured finish
Power Input115V/60/1 Phase
230V/60/1 Phase
Motor Options1HP, 1.5HP
Blower OptionsBelt driven, forward curved
Standard FeaturesStandard 1 HP and optional 1-1/2 HP belt-drive blower with adjustable sheave to handle a wide range of applications
Dirty filter gauge for easy monitoring of filter status
Power indicator light
10-foot power cord with molded plug
Dual 8″ collars for duct installation flexibility
Standard size prefilter and main filter track size allows for the use of a variety of filter media for a wide range of applications
Drain connection to return collected oil/coolant back to the machine tool or to collect anything that drains off the filters in the air cleaner
Filter Options PrefilterTwo 12″ x 24″ x 2″ Mist Impingers
One 12″ x 24″ x 4″ Pleated Prefilter MERV 8
Filter Options PrimaryOne 12″ x 24″ x 26″ MERV 14 Bag Filter
One 12″ x 24″ x 26″ MERV 13 Bag Filter
One 12″ x 24″ x 12″ Polypropylene ESF MERV 14
One 12″ x 24″ x 12″ Polypropylene ESF MERV 13
AccessoriesOne to two 22 lbs. odor modules
Wall mount arm
WeightShipping: 340 lbs
Installed: 305 lbs
Specifications subject to change without notice.

M33O Dimensions

M33O dimensions
* All measurements in inches

M66O Mist & Smoke Collector

MX Series M66O M660 Mist Smoke Collector

ModelM66O
Maximum Recommended Airflow2,000 CFM
Cabinet16 gauge steel cabinet with powder coated chemical resistant baked enamel with ivory textured finish
Power Input110-120V/60/1 Phase
208-240V/60/1 Phase
208-240V/60/3 Phase
440-480V/60/3 Phase
Motor Options1HP, 1.5HP, 2HP, 3HP, 5HP
Blower OptionsBelt driven, forward curved
Direct drive, backward inclined
Standard FeaturesVariety of motor and blower configurations to handle a wide range of applications
Direct-drive, backward-inclined optional for applications requiring higher static due to ductwork
Optional silencer for applications that demand quiet operation
Dirty filter gauge for easy monitoring of filter status
Power indicator light
10-foot power cord with molded plug (single phase only)
Standard size prefilter and main filter track size allows for the use of a variety of filter media for a wide range of applications
Drain connection to return collected oil/coolant back to the machine tool or to collect anything that drains off the filters in the air cleaner
Dual 8″ collars for duct installation flexibility
Filter Options PrefilterTwo 24″ x 24″ x 2″ Mist Impingers
One 24″ x 24″ x 4″ Pleated Prefilter MERV 8
One 24″ x 24″ x 4″ Pleated Prefilter MERV 11
Filter Options PrimaryOne 24″ x 24″ x 26″ MERV 14 Bag Filter
One 24″ x 24″ x 26″ MERV 13 Bag Filter
One 24″ x 24″ x 12″ Polypropylene ESF MERV 14
One 24″ x 24″ x 12″ Polypropylene ESF MERV 13
Accessories45 lbs. odor module(s)
HEPA filter module
Additional pre-filtration
Wall mount arm
Silencer
WeightShipping: 430 lbs
Installed: 360 lbs
Specifications subject to change without notice.

M66O Dimensions

M66O dimensions
* All measurements in inches

M266O Mist & Smoke Collector

M2660 Mist Smoke Collector

ModelM266O
Maximum Recommended Airflow4,000 CFM
Cabinet16 gauge steel cabinet with powder coated chemical resistant baked enamel with ivory textured finish
Power Input208-240V/60/3 Phase
440-480V/60/3 Phase
International voltages available
Motor Options3HP; 5HP; 7.5HP; 10HP; 15HP
Custom motors selected per application
Blower OptionsDirect-drive, backward inclined
Custom blowers selected per application
Motor-blower packages sold separately
Standard FeaturesVariety of motor and blower configurations to handle a wide range of applications
Optional silencer for applications that demand quiet operation
Dirty filter gauge for easy monitoring of filter status
Inlet flange for attaching ductwork
Standard size prefilter and main filter track size allows for the use of a variety of filter media for a wide range of applications
Drain connection to return collected oil/coolant back to the machine tool or to collect anything that drains off the filters in the air cleaner
Filter Options Prefilter24″ x 24″ x 2″ Mist Impingers
24″ x 24″ x 4″ Pleated Prefilter MERV 8
24″ x 24″ x 4″ Pleated Prefilter MERV 11
Quantity determined based on application
Filter Options Primary24″ x 24″ x 26″ MERV 14 Bag Filter
24″ x 24″ x 26″ MERV 13 Bag Filter
24″ x 24″ x 12″ Polypropylene ESF MERV 14
24″ x 24″ x 12″ Polypropylene ESF MERV 13
2 Primary Filters Per Unit
Accessories45 lbs. odor module(s)
Additional pre-filtration
Wall mount arm
Silencer
HEPA filter modules
Weight2 stage (w/o HEPA):
Shipping: 640 lbs.
Installed: 600 lbs.
3 stage (with HEPA):
Shipping: 875 lbs
Installed: 830 lbs.
Specifications subject to change without notice.

M266O Dimensions

M266O dimensions
* All measurements in inches

M366O Mist & Smoke Collector

M3660 Mist Smoke Collector

ModelM366O
Maximum Recommended Airflow6,000 CFM
Cabinet16 gauge steel cabinet with powder coated chemical resistant baked enamel with ivory textured finish
Power Input208-240V/60/3 Phase
440-480V/60/3 Phase
International voltages available
Motor Options3HP; 5HP; 7.5HP; 10HP; 15HP
Custom motors selected per application
Blower OptionsDirect-drive, backward inclined
Custom blowers selected per application
Motor-blower packages sold separately
Standard FeaturesVariety of motor and blower configurations to handle a wide range of applications
Optional silencer for applications that demand quiet operation
Dirty filter gauge for easy monitoring of filter status
Inlet flange for attaching ductwork
Standard size prefilter and main filter track size allows for the use of a variety of filter media for a wide range of applications
Drain connection to return collected oil/coolant back to the machine tool or to collect anything that drains off the filters in the air cleaner
Filter Options Prefilter24″ x 24″ x 2″ Mist Impingers
24″ x 24″ x 4″ Pleated Prefilter MERV 8
24″ x 24″ x 4″ Pleated Prefilter MERV 11
Quantity determined based on application
Filter Options Primary24″ x 24″ x 26″ MERV 14 Bag Filter
24″ x 24″ x 26″ MERV 13 Bag Filter
24″ x 24″ x 12″ Polypropylene ESF MERV 14
24″ x 24″ x 12″ Polypropylene ESF MERV 13
3 Primary Filters Per Unit
Accessories45 lbs. odor module(s)
Additional pre-filtration
Wall mount arm
Silencer
HEPA filter modules
Weight2 stage (w/o HEPA):
Shipping: 950 lbs.
Installed: 890lbs.
3 stage (with HEPA):
Shipping: 1,300 lbs
Installed: 1,240 lbs.
Specifications subject to change without notice.

M366O Dimensions

M366O dimensions
* All measurements in inches

M466O Mist & Smoke Collector

M4660 Mist Smoke Collector

ModelM466O
Maximum Recommended Airflow8,000 CFM
Cabinet16 gauge steel cabinet with powder coated chemical resistant baked enamel with ivory textured finish
Power Input208-240V/60/3 Phase
440-480V/60/3 Phase
International voltages available
Motor Options3HP; 5HP; 7.5HP; 10HP; 15HP
Custom motors selected per application
Blower OptionsDirect-drive, backward inclined
Custom blowers selected per application
Motor-blower packages sold separately
Standard FeaturesVariety of motor and blower configurations to handle a wide range of applications
Optional silencer for applications that demand quiet operation
Dirty filter gauge for easy monitoring of filter status
Inlet flange for attaching ductwork
Standard size prefilter and main filter track size allows for the use of a variety of filter media for a wide range of applications
Drain connection to return collected oil/coolant back to the machine tool or to collect anything that drains off the filters in the air cleaner
Filter Options Prefilter24″ x 24″ x 2″ Mist Impingers
24″ x 24″ x 4″ Pleated Prefilter MERV 8
24″ x 24″ x 4″ Pleated Prefilter MERV 11
Quantity determined based on application
Filter Options Primary24″ x 24″ x 26″ MERV 14 Bag Filter
24″ x 24″ x 26″ MERV 13 Bag Filter
24″ x 24″ x 12″ Polypropylene ESF MERV 14
24″ x 24″ x 12″ Polypropylene ESF MERV 13
4 Primary Filters Per Unit
Accessories45 lbs. odor module(s)
Additional pre-filtration
Wall mount arm
Silencer
HEPA filter modules
Weight2 stage (w/o HEPA):
Shipping: 1,268 lbs.
Installed: 1,195 lbs.
3 stage (with HEPA):
Shipping: 1,728 lbs
Installed: 1,655 lbs.
Specifications subject to change without notice.

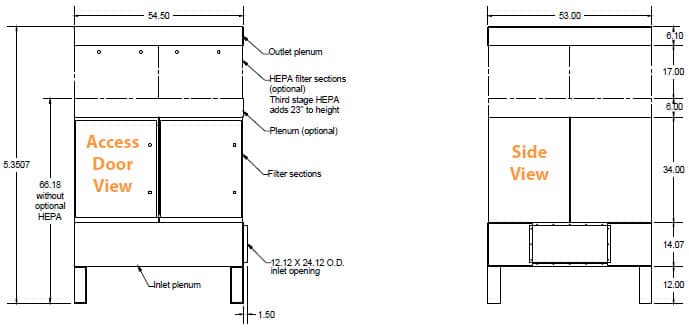

M466O Dimensions

M466O dimensions
* All measurements in inches
