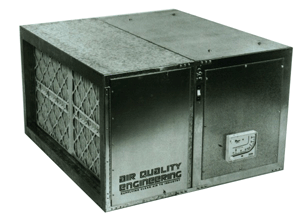

The M73 Industrial Media Filtration Unit is a self-contained media air cleaning system designed for general background or ducted for source capture applications. The M73 air cleaner includes the E.S.F. MicroGlass Filters for long filter life and high efficiencies to effectively remove smoke, mist, dust and other airborne contaminants at a rate of up to 6000 CFM.
For more information on our powerful industrial air cleaner, please contact us. If you are in need of replacement parts for this air filtration unit, review our parts list for the M73.
M73 Media Air Cleaner Specifications
Supplying Clean Air to Industry
Let Air Quality Engineering use our decades of air cleaning experience to help solve your industrial air quality problems and improve your plant’s productivity.
Air Quality Engineering uses proven technologies and a comprehensive range of equipment to handle harmful airborne industrial contaminants such as coolant mist, welding smoke, and grinding dust. Our industrial air cleaners are easily installed and available for general background air cleaning or source capture applications.
The M73 air cleaner is a media filtration unit featuring an ESF gradient density non-shedding polypropylene filter for long filter life and high efficiency to effectively remove smoke, mist, and dust particulate. It is designed for source capture and ambient air cleaning applications within environments such as grinding, welding, foam cutting, rubber extruding, injection molding and dust associated with warehousing facilities.
Air Quality Engineering has packed the M73 with standard features to extend filter life and reduce installation and maintenance costs:
- 5HP Backward inclined blower assists in extended filter life
- Two extended service filters assists in reducing long term maintenance costs
- Motor circuitry included to reduce additional installation costs
The M73 provides a maximum recommended airflow of 5500 CFM. It is designed with multi-stage filtration: pleated pre-filtration, high efficiency long service life primary filtration, and an optional bulk refillable odor module containing up to 576 lbs.vapor filtration media.
Air Quality Engineering stands behind the quality of the M73 with a limited 36 month warranty.
|Maximum Recommended Airflow:
|16 gauge steel
International voltages available
|Direct drive backward inclined
|Dirty filter gauge
Motor starter and control circuitry
|Filter Options Prefilter:
|2 24″ x 24″ x 4″ Pleated Prefilter
4 24″ x 24″ x 2″ Mist Impingers
|Filter Options Primary:
|2 24″ x 24″ x 12″ Polypropylene ESF
|Custom source capture plenum
Wall mount arms
|465 lbs shipped
405 lbs installed
Specifications subject to change without notice. This unit is required to be used in source capture configurations only when installed in California. Units purchased for installation in California must be purchased with Air Quality Engineering supplied and installed source capture plenums.
