CM-12 MiracleAir Commercial Institutional Air Cleaners

CM-12 MiracleAir tobacco smoke air cleaner

Indoor air quality has become even more important today as businesses work to enhance air filtration in the place of business and work, and in other institutions. A common recommendation is to increase the MERV efficiencies of your facility’s HVAC system (although unfortunately, many systems are not designed to accommodate the increased restriction of the higher efficiency filters).

In addition, the Centers for Disease Control and Prevention (CDC) COVID-19 workplace guidelines suggest considering the use of auxiliary portable HEPA filtration. Air Quality Engineering offers roll-around portable true HEPA filtration as well as ancillary ceiling-mounted and suspended ceiling HEPA-like units (95% DOP Efficient/MERV 16 Efficient).

Your HVAC contractor can recommend the best placement of portable or ceiling-hung units in order to aid appropriate air flows and ventilation for your workplace environment in these challenging times. Air quality is an important investment your clients, customers, and employees have come to rely upon and value.

The CM-12 commercial air cleaner is the ultimate solution for indoor air pollution capturing both particulate and gaseous contaminants. This air cleaner excels at getting pollen, dust, vapors, odors and many other irritants out of the air with high efficiency, long lasting disposable filters.
Intertek ETL Listed marking
Meets California ozone emissions limit: CARB certified.

Learn more about the MiracleAir CM-12 indoor air cleaner with the technical specification information below. Here’s a parts list for all our air cleaners designed to remove dust vapors and more from the air.

Request Quote

MiracleAir CM-12 Specifications For Commercial Space

High Performance Particulate and Vapor Filtration Solutions

office space after COVID classroom after COVID

Indoor air quality issues, whether in schools, offices or waiting rooms, require a combination of high efficiency filtration and absorbent media to handle both airborne contaminant and odor/ vapor removal. Air Quality Engineering’s EverClear CM-11 and MiracleAir CM-12 air cleaners are designed to meet those needs.

The CM-12 is designed to handle:

  • Office buildings
  • Stores
  • Dental office reception rooms
  • Doctor office waiting rooms
  • Schools and higher education buildings
  • Banks
  • Other types of business
  • And more

Intertek ETL Listed markingThe CM-12 delivers efficiency, savings, and minimal maintenance cost by:

  • Removing dust, smoke, pollen and other airborne particles with 95% efficient (at .3 micron) HEPA type filters
  • Using 3-speed controller allowing ease of airflow adjustment
  • Increased filter life by using large volumes of media used in both the particulate and the odor/vapor disposable filters
  • Ease of filter access within the units for maintenance

The CM-12 air cleaner is THE air cleaning solutions for indoor air quality! Meets California ozone emissions limit: CARB certified.

MiracleAir CM-12

CM12 Air Cleaner

Installation

The CM-12 can easily be mounted to the ceiling or wall and plugs into a 120V outlet. Optimal positioning is nearest the source of contaminant.

Unit Part Numbers

Standard CM-12

00332 MiracleAir CM-12, WHITE, 120V, 5 lbs. carbon
00432 MiracleAir CM-12, BLACK, 120V, 5 lbs. carbon
00339 MiracleAir CM-12, WHITE, 120V, 5 lbs. carbon, 3-speed wall control
00434
MiracleAir CM-12, BLACK, 120V, 5 lbs. carbon, 3-speed wall control

Deluxe CM-12

00337 MiracleAir CM-12, WHITE, 120V, 22 lbs. carbon
00431 MiracleAir CM-12, BLACK, 120V, 22 lbs. carbon
00338 MiracleAir CM-12, WHITE, 120V, 22 lbs. carbon, 3-speed wall control
00433
MiracleAir CM-12, BLACK, 120V, 22 lbs. carbon, 3-speed wall control

Replacement Filters

41194 Mesh Prefilter, CM-12
41039 Media Prefilter Pad, 24″ x 29.5″ x 1″
41190 MERV 16 (95% DOP) Main Filter CM-12
41196 Carbon Filter, disposable (2 each required per Standard Unit) CM-12
07163
VOC Replacement Kit CM-12 (1 each required per Deluxe Unit)

Optional Accessories

07171 Wall Mount Kit CM-12
41241 Prefilter Frame CM-12 for Disposable Pads
41039
Media Prefilter Pad, 24″ x 29.5″ x 1″

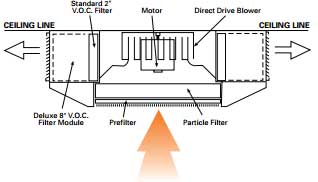

CM12 Air Cleaner Diagram

Capacity (CFM)

Low Speed Med. Speed High Speed
380 630 850

Dimensions

Length Width Depth
39″ 22 5/8″ 13 1/4″

Weight

Model Shipping Installed
Standard 115 lbs 90 lbs
Deluxe 149 lbs 124 lbs

Efficiency (based on filter selection)

Efficiency Part No Filter Description
95% DOP on .3 micron 41190 MERV 16 (95% DOP) Disposable Filter

Power

115V, 4.3 AMPS, 60Hz; 3-prong, 10-foot power cord plugs into standard grounded outlet.
230V, 2.2 AMPS, 60Hz



Specifications subject to change without notice. This product is not available for resale or installation in California.
